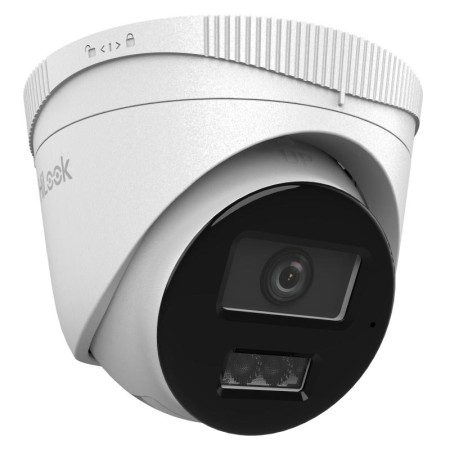

HiLook dome IPC-T220HA-LU F2.8 (white, 2 MP, 30 m. IR, 30 m. LED, Hybrid Light)
zoom_out_map
chevron_left chevron_right

HiLook dome IPC-T220HA-LU F2.8 (white, 2 MP, 30 m. IR, 30 m. LED, Hybrid Light)

  • MP (MegaPixel): 2 MP
  • Lens: 2.8 mm, horizontal FOV: 103°
  • Technology: Hybrid Light
  • Integrated microphone: Yes
  • Night light: 30 m. IR; 30 m. LED
  • MicroSD storage: No
  • Operating Conditions: -30 °C to 60 °C
  • Protection: IP67
  • Video Compression: H.265/H.264/H.264+/H.265+
  • WiFi: No
  • Bracket: DS-1272ZJ-110
  • Outdoor/Indoor: Outdoor

€60.32

€60.32 Tax excluded

archive

DPD Pick up terminal. Delivery within 1-8 days.  ( from 3,00 €)

local_shipping

Delivery via DPD courier service. Delivery within 1-8 days.  ( from 4,00 €)

  • Camera
  • Image Sensor1/2.9" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

    4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6
  • DORI
  • DORI

    2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

    4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio TypeMono sound
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Network
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile T),ISAPI,SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • ClientiVMS-4200,HiLookVision
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in MicrophoneYes
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageUpload to FTP,send email,notify surveillance center,trigger capture
  • General
  • Power

    12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: IEEE 802.3af, Class 3, max. 6.5 W

  • MaterialMetal & Plastic
  • DimensionØ110 mm × 89.2 mm (Ø4.3" × 3.5")
  • Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • WeightApprox. 340 g (0.7 lb.)
  • With Package WeightApprox. 560 g (1.2 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
  • Approval
  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7

  • Safety

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013
HiLook
TVKIPIPCT220HALU
